How to Properly Install a French Drain System: A Step-by-Step Guide
When it comes to managing water runoff and preventing flooding or water damage, a French drain system is one of the most effective solutions. Whether you’re dealing with a soggy lawn, a basement that floods during heavy rains, or simply want to improve drainage around your property, installing a French drain can make a world of difference. In this guide, we’ll walk you through the process step by step.
Step 1: Planning Your French Drain
Before you start digging, you need to plan where the water will be directed. Here’s what to consider:
- Identify the Water Problem Area: Locate the area where water is collecting or causing issues.
- Determine the Drainage Path: The drain should lead to a safe area where water can be discharged, such as a dry well, a drainage ditch, or a street gutter. The path should have a gradual slope of at least 1% (1 foot of drop per 100 feet of length) to ensure water flows properly.
- Check for Underground Utilities: Always call your local utility companies before digging to avoid damaging any underground lines.
Step 2: Gathering the Necessary Materials and Tools
You’ll need the following materials and tools:
- Perforated drain pipe (PVC or corrugated)
- Gravel or crushed stone (preferably ¾ inch)
- Landscape fabric or filter cloth
- Shovel or trenching tool
- Level
- Measuring tape
- Wheelbarrow
- Stakes and string (for marking)
- Optional: Catch basin (for heavy water flow areas)
Step 3: Marking and Digging the Trench
- Mark the Trench Path: Use stakes and string to outline the path of your French drain. Ensure the path follows a consistent slope.
- Dig the Trench: The trench should be about 6 inches wide and 18-24 inches deep. For larger drainage areas, a deeper trench may be necessary.
- Check the Slope: As you dig, use a level to make sure the trench has a consistent slope. Adjust as needed.
Step 4: Installing the Landscape Fabric
- Lay the Fabric: Line the trench with landscape fabric or filter cloth. The fabric should extend beyond the edges of the trench, as it will be folded over the top of the gravel later. This fabric will prevent soil from clogging the drain over time.
Step 5: Adding Gravel
- Add a Base Layer of Gravel: Pour about 2-3 inches of gravel or crushed stone into the bottom of the trench. This layer will help facilitate water flow toward the drain pipe.
- Ensure Even Coverage: Spread the gravel evenly across the trench and check the slope again.
Step 6: Laying the Drain Pipe
- Position the Pipe: Lay the perforated drain pipe on top of the gravel. Make sure the holes in the pipe face downward to allow water to enter and flow through the pipe.
- Secure the Pipe: If you’re using a corrugated pipe, stakes may be necessary to hold it in place while you add more gravel.
Step 7: Backfilling with Gravel
- Cover the Pipe: Pour additional gravel over the pipe until the trench is filled, leaving about 2-3 inches at the top for soil.
- Wrap the Fabric: Fold the landscape fabric over the top of the gravel. This will help keep debris out of the drain system while allowing water to pass through.
Step 8: Covering the Trench
- Backfill with Soil: Add the remaining soil on top of the fabric to level the ground with the surrounding area. If desired, you can add sod or plant grass seed to restore the appearance of your lawn.
- Compact the Soil: Lightly compact the soil to prevent settling.
Step 9: Testing the Drain
- Check the Drainage: After installation, test the drain by running water through it. Ensure that water flows freely through the pipe and exits at the intended discharge point.
Conclusion
Installing a French drain is a practical and effective way to manage water on your property. With the right tools and a little bit of planning, you can prevent water damage and keep your landscape healthy and dry. If you have any questions or need professional assistance, feel free to contact us at 702-949-2988!

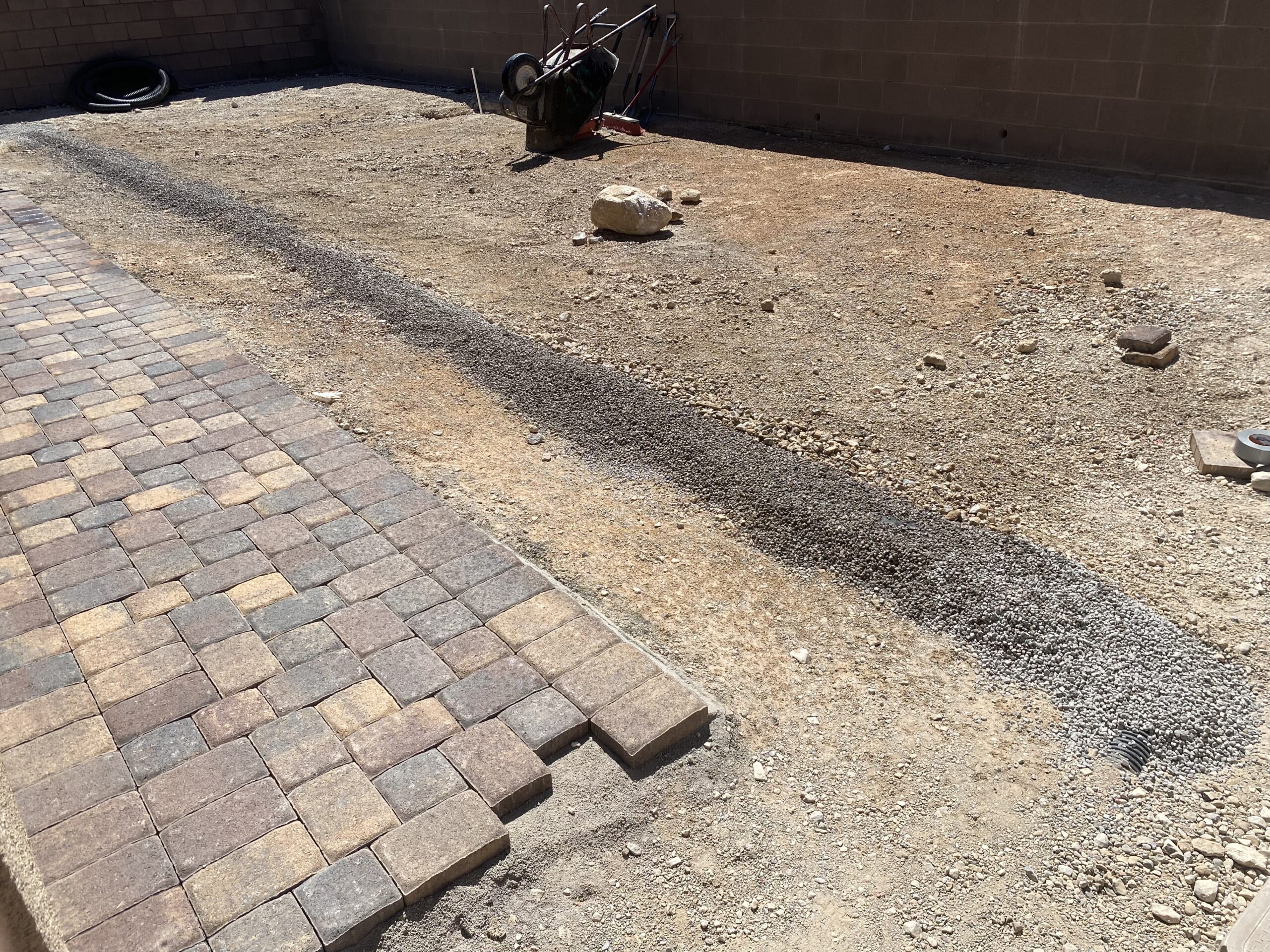

See the image gallery below featuring a step by step on how we set up our french drain systems under pavers and turf.
